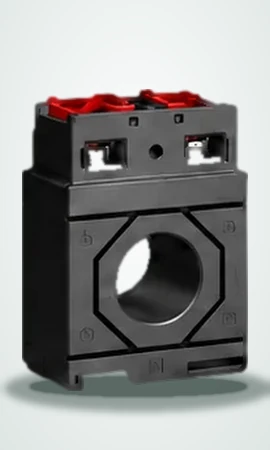

Round ID
Round opening in a compact casing for cables and round conductors.
Overview

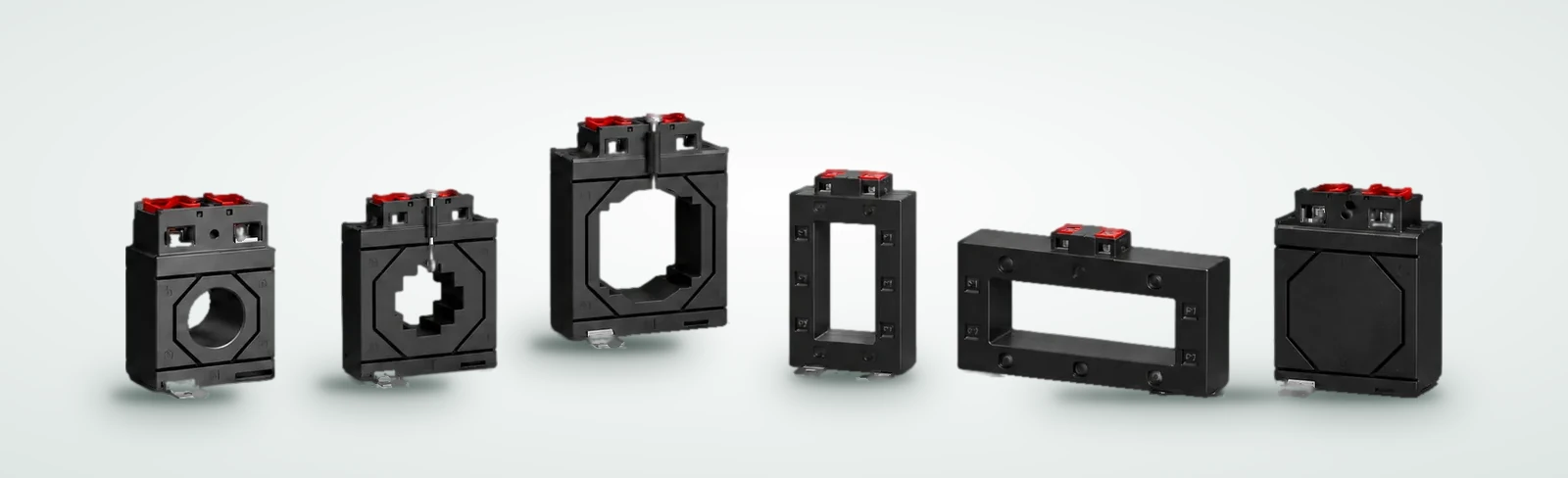

Encapsulated Polycarbonate Current Transformers (Nylon Casing)
The encapsulated range pairs a polycarbonate / nylon casing with clip-in secondary terminals, making installation fast and neat. The wide choice of window shapes and terminal positions means you can match the CT to the busbar or cable and to the space available in the panel.
Configurations
6 types to match your installation

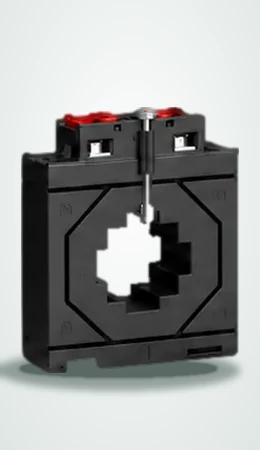

Rectangular ID – compact
Compact frame with the primary opening designed to suit smaller busbar and cable sizes.

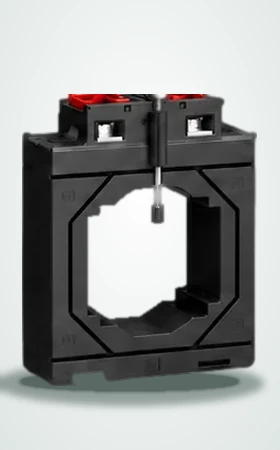

Rectangular ID – large frame
Large-frame housing for higher-current feeders and heavier conductors.

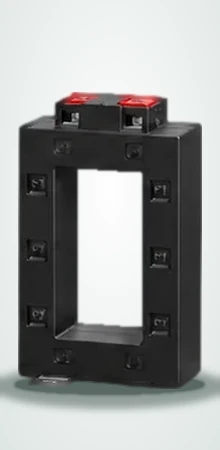

Shorter Side Terminal
Rectangular window with the secondary terminal on the shorter side – ideal for narrow panel space.

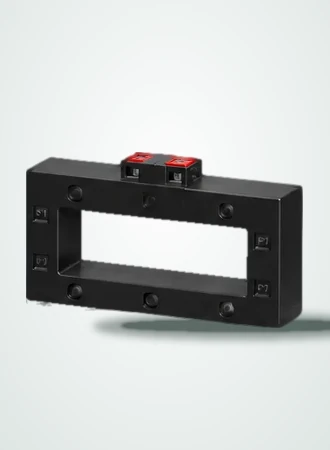

Longer Side Terminal
Wide rectangular window with the terminal on the longer side, suited to wide busbars.

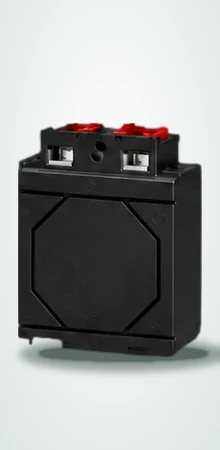

WPL
Compact block-type unit with a solid front face and top-mounted terminals.
Key features
Built for dependable performance
- Polycarbonate / nylon casing
- Six configurations: round, rectangular, shorter-side and longer-side terminal, WPL
- Top-mounted secondary terminals for fast, neat wiring
- Base mounting feet for secure fixing in the panel
- Compact, light-weight construction
- Tested on in-house test bench and Omicron CT analyzer
Applications
Where it is used
- Compact LV panels and MCCs
- Capacitor and APFC panels
- Metering and energy-management systems
- Industrial and commercial buildings
- Solar and utility installations
Specifications
Engineered to your parameters
Share the parameters below with your enquiry. Detailed datasheets are available on request.
| Primary current / ratio | Specified to the load or busbar rating, with standard 1 A or 5 A secondary |
|---|---|
| Burden (VA) | Matched to the meters, relays and lead length connected |
| Accuracy class | Metering or protection class chosen for the application |
| Window / ID size | Round or rectangular opening sized to your cable or busbar |
| Terminal position | Shorter side, longer side or top-mounted as the panel requires |
| Quantity & delivery | From single units to volume supply with consistent quality |
Get a quote
Enquire about Encapsulated CTs
Tell us what you need – ratio, burden, accuracy class, window size, terminal position and quantity – and we will respond within one working day.
